A 2 Piece Ball Valve is a widely used industrial valve designed for efficient flow isolation in piping and process systems. Its two-piece body construction houses a spherical ball that rotates to control the movement of liquids, gases and other compatible process media.
The simple quarter-turn operating principle of a Two Piece Ball Valve allows quick movement between open and closed positions. Depending on the design, material, size, pressure rating and sealing arrangement, these valves can be used across manufacturing, process industries, utilities, oil and gas, chemical processing and other industrial applications.
Sumit Valves Mfg Co. provides industrial valve solutions for customers looking for reliable flow-control products. The correct 2 Piece Ball Valve should always be selected according to the process fluid, operating pressure, temperature, pipeline requirements and applicable technical standards.
A 2 Piece Ball Valve is a ball valve manufactured with two main body sections. Inside the body is a spherical ball containing a central passage. When the ball is rotated so that the passage aligns with the pipeline, fluid can flow through the valve. Rotating the ball away from the flow path closes the valve.
The two-piece construction provides a practical arrangement for housing the internal components of the valve while maintaining a compact flow-control design.
The working principle of a 2 Piece Ball Valve is based on rotational movement. The valve stem transfers movement from the handle or actuator to the internal ball.
In the open position, the ball's internal passage is aligned with the pipeline. This allows the process fluid to pass through the valve.
When the ball is rotated approximately 90 degrees, the internal passage moves away from the pipeline. This blocks the flow path and isolates the downstream section.
The quarter-turn design allows rapid operation between open and closed positions. This makes ball valves particularly useful where quick isolation is required.
The valve body provides the main pressure-containing structure and houses the ball, seats and other internal components. The body material should be suitable for the process environment.
The ball is the primary flow-control element. Its central bore provides the passage for fluid when the valve is open.
The stem connects the operating mechanism to the ball. When the stem rotates, the ball moves between its open and closed positions.
Seats create the sealing interface around the ball. Their material and design should be compatible with the process fluid and operating temperature.
A manually operated valve generally uses a handle to rotate the stem and ball. The handle position can also provide a visual indication of the valve's operating position.
Seals and packing help prevent leakage around the valve stem and body connections. Their selection depends on the valve design and operating conditions.
Different 2 Piece Ball Valve configurations can be selected depending on the application and system requirements.
In a floating ball valve design, the ball is not fixed directly to the lower stem support. System pressure helps push the ball toward the downstream seat, contributing to sealing.
Threaded configurations can be used in piping systems where threaded connections are suitable for the application and installation requirements.

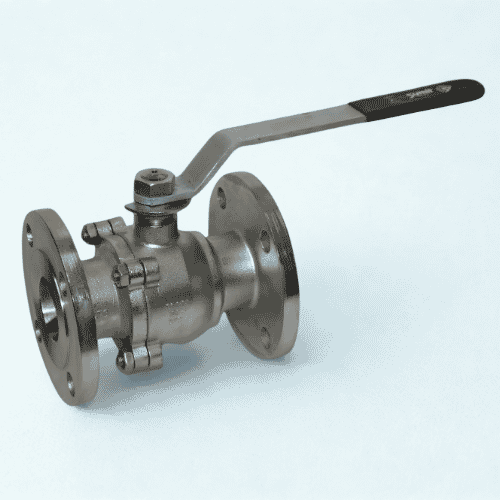

Flanged configurations use flanged connections and can be suitable for industrial piping systems where flanged installation is required.
A 2 Piece Stainless Steel Ball Valve can be considered for applications where corrosion resistance and compatibility with the process environment are important.
A carbon steel configuration can be suitable for various industrial services when its material characteristics match the pressure, temperature and fluid requirements.
Material selection is an important part of choosing an Industrial 2 Piece Ball Valve. The appropriate material depends on the process fluid, operating temperature, pressure, corrosion environment and required service conditions.
Stainless steel can provide useful corrosion-resistance characteristics for suitable industrial applications. A Stainless Steel 2 Piece Ball Valve may be selected where material compatibility is important.
Carbon steel is commonly considered for suitable industrial applications requiring a robust metallic valve body. The specific grade and configuration should be matched with the application.
Depending on the valve design, additional materials may be available for specific components, seats and sealing elements. Material selection should be based on the complete operating environment.
A 2 Piece Ball Valve can be used across numerous industrial and commercial piping applications. The exact suitability depends on the valve specifications and process conditions.
Industrial piping systems require dependable methods for isolating and controlling process flow. A 2 Piece Ball Valve offers a straightforward quarter-turn mechanism that can quickly move the valve between open and closed positions.
When correctly selected, ball valves can provide an efficient flow path in the open position and effective isolation in the closed position. Their compact construction also makes them suitable for many different piping arrangements.
The quarter-turn operating mechanism allows fast movement between open and closed positions compared with valves requiring multiple turns.
The ball valve design provides a relatively compact solution for many industrial flow-isolation requirements.
When fully open, the ball's passage can provide a relatively direct path for fluid flow.
Depending on the material and configuration, Two Piece Ball Valves can be used across a broad range of industrial systems.
Different material and sealing options allow valve selection according to the process environment and application requirements.
First determine whether the valve will handle water, oil, gas, chemicals, air, steam or another process medium. Fluid compatibility is essential when selecting the valve body, ball, seats and seals.
The valve should have an appropriate pressure rating for the system. Consider both normal and maximum operating conditions.
Temperature can influence the performance of the valve body, seats, seals and other components. Always verify the applicable temperature range.
Choose the valve material according to corrosion conditions, fluid characteristics and mechanical requirements.
The valve size should be compatible with the pipeline and flow requirements. Connection dimensions should also be checked before installation.
Threaded, flanged and other connection configurations may be available depending on the valve design. Select the connection compatible with the existing piping system.
Manual operation may be suitable for some systems, while other applications may require pneumatic or electric actuation.
2 Piece Ball Valves can be used in suitable water piping systems for isolation and flow-control duties. Material, pressure rating, size and connection type should be selected according to the water system requirements.
For industrial water applications, users should also consider corrosion conditions, water quality, temperature and installation environment before selecting the valve.
Ball valves can be used for suitable gas applications when the valve design, sealing system, material and applicable approvals meet the requirements of the service.
Gas service requires careful attention to leakage prevention and material compatibility. The exact valve specifications should therefore be verified before installation.
Chemical applications require careful valve selection because different chemicals can react differently with metals, seats and sealing materials.
A 2 Piece Ball Valve for chemical service should therefore be selected after reviewing the chemical composition, concentration, temperature, pressure and compatibility of all wetted materials.
Proper inspection and maintenance can help support reliable valve operation. Maintenance requirements depend on the valve design and operating environment.
External leakage may result from damaged seals, loose connections, improper installation, corrosion or component wear. The valve should be inspected to identify the actual cause.
Internal leakage can occur because of damaged seats, contamination, wear or unsuitable operating conditions.
Increased operating torque can be caused by deposits, corrosion, mechanical damage or pressure-related conditions.
Corrosion can occur when valve materials are unsuitable for the process fluid or surrounding environment. Proper material selection is therefore important.
Choosing a reliable 2 Piece Ball Valve Manufacturer can help industrial buyers obtain valves suitable for their application requirements. Product selection should consider valve size, material, pressure rating, temperature, connection type and process fluid.
A professional 2 Piece Ball Valve Supplier can also assist customers in identifying suitable configurations for new installations, maintenance requirements and replacement applications.
Sumit Valves Mfg Co. provides industrial valve solutions for businesses and industries requiring reliable flow-control products. Customers looking for a 2 Piece Ball Valve Manufacturer in India can contact us with their application and technical requirements.
Our team can assist customers with valve requirements based on available information such as size, material, pressure rating, connection type and application.
A 2 Piece Ball Valve is a ball valve constructed with two main body sections and a rotating ball used to control or isolate fluid flow.
A Two Piece Ball Valve works by rotating a spherical ball with a central passage. The passage aligns with the pipeline when open and moves across the flow path when closed.
Its main advantages include quarter-turn operation, compact construction, efficient flow characteristics and suitability for many industrial isolation applications.
They are used in industrial process piping, water systems, gas systems, chemical plants, manufacturing facilities, oil and gas applications and other suitable fluid systems.
Depending on the design, materials can include stainless steel, carbon steel and other suitable materials for specific applications.
A Stainless Steel 2 Piece Ball Valve uses stainless steel for specified valve components and can be selected where corrosion resistance and fluid compatibility are important.
A Carbon Steel 2 Piece Ball Valve uses carbon steel for specified components and can be suitable for various industrial applications when its characteristics match the service.
Yes. Suitable models can be used for industrial flow isolation and piping applications when their specifications match the system requirements.
Yes. Suitable 2 Piece Ball Valves can be used in water systems depending on the valve material, pressure rating, size and connection requirements.
Suitable models can be used for gas applications when their construction, seals, ratings and required approvals are appropriate for the service.
They can be used for suitable chemical applications when all wetted materials are compatible with the chemical, concentration, temperature and pressure.
Quarter-turn operation means the valve can move between open and closed positions through approximately 90 degrees of rotation.
Depending on the valve design, suitable pneumatic or electric actuators can be used for automated operation.
Consider process fluid, pressure, temperature, valve size, material, connection type, sealing materials and operating method.
Valve material affects corrosion resistance, mechanical performance and compatibility with the process fluid and operating environment.
Leakage can be caused by damaged seats or seals, contamination, wear, improper installation, corrosion or unsuitable operating conditions.
Regular inspection, leakage checks, connection inspection, operating mechanism checks and appropriate component replacement can help maintain valve performance.
A floating ball valve uses a ball that is not fixed directly to the lower body support. System pressure can help move the ball toward the downstream seat.
A flanged 2 Piece Ball Valve uses flanged connections for installation into compatible piping systems.
A threaded 2 Piece Ball Valve uses threaded connections and can be suitable for piping systems designed for compatible threaded installation.
Suitable models can be used for high-pressure applications when their pressure-temperature ratings meet the actual system requirements.
Yes. Temperature can affect the allowable pressure rating and the performance of valve seats, seals and other materials.
Valve size should be selected according to the pipeline, flow requirements, connection dimensions and system design.
Useful information includes valve size, material, pressure rating, connection type, process fluid, operating pressure, temperature and quantity.
The primary distinction is the body construction. A 2 Piece Ball Valve uses two main body sections, while other designs may use different body configurations.
Yes. Ball valves are commonly used for isolation when correctly selected and installed for the intended application.
Industries include manufacturing, chemical processing, oil and gas, petrochemical, water treatment, power generation and general process industries.
Sumit Valves Mfg Co. provides industrial valve solutions for customers requiring 2 Piece Ball Valve products and related flow-control requirements.
Yes. Customers can provide application and technical information to discuss suitable valve requirements.
You can contact Sumit Valves Mfg Co. for 2 Piece Ball Valve requirements and industrial valve enquiries using the contact details provided below.
A 2 Piece Ball Valve is a practical flow-isolation solution used across many industrial piping and process applications. Its two-piece body construction and quarter-turn operating principle provide a straightforward method of controlling fluid flow.
The right valve should always be selected according to the process fluid, pressure, temperature, material, valve size, connection type, sealing arrangement and operating requirements. Proper selection and maintenance can help support reliable performance throughout the valve's service life.
For industrial valve requirements, Sumit Valves Mfg Co. provides valve solutions for customers looking for a 2 Piece Ball Valve Manufacturer and 2 Piece Ball Valve Supplier.
